Lofting (or taking lines) off the Chestnut Cruiser/Guides Special - or, 'what i did with a few days of a week off'.

Our super rare find earlier this summer, is down from the rafters in preparation for having its lines taken off. Far too complex a process to describe in detail here, lofting is the process of drawing out the boats shape, accomplished by effectively rendering sections of the boat, as though viewed while being sliced into sections. Proving the measurements taken allows for the lines to be corrected, since the finished craft will inevitably have moved, or changed shape, anywhere from its initial build and throughout its life, up to present day. This allows for an accurate set of plans to be drawn up, and a building form to be made from the plans to build exact replicas of the boat being copied. In our case, the only  unmodified pre-fire cruiser currently known to exist.
Want to move through the North country as Thomson did? The first step is to have the boat he used.
And so it begins....


It begins with an import mini van? Sure, the easiest way to get 4x8 sheets of plywood back to the shop. The smooth veneer plywood will be painted with flat white paint, in order to use pencils and battens to determine the curves as they come off the boat.


Next is a thorough cleaning of the shop, long overdue. Thats followed by brooming the floor, and a vacuuming to get everything up off of it - staples, tacks, screws, all the stuff thats fun to kneel on.


Finally clean, this is where the plywood will be laid out for measurements to be transfered.


Fingers are used to take several measurements off of the boat, including sheer, baseline, and many points along the hull once everything is set up, trued and leveled


Uprights are not yet in place for the string which will be used as a baseline.


Plywood is laid out alongside the boat, as everything will be done full size, or 1:1.  Often lines are given in a table of offsets which then need to be lofted out full sized, however this method is done actual size.


Not the way a lot of people would spend their week off, but we've been looking forward to this with much anticipation since collecting the boat.


The first of two coats of flat white is on and drying.


More to come after the paint dries...

Baseline is set up and leveled, after uprights are put in place.



Rocks are handy and weight down the posts so the string can be drawn tight.

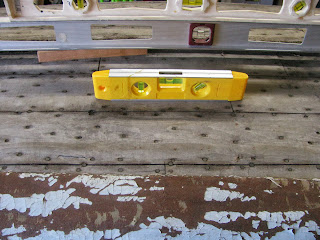

Boat is leveled under string.



Distance to baseline string recorded, and ready to start



Extra fingers, nails for battens, lots of pencils and sharpeners




Kneepads are essential when working on concrete floors!


First station being taken



Another view



First station profile, now its getting exciting as the anticipation fades into action.




Few more



Half of one side, or one quarter of boat done. One more quarter will be done, and the lines proven and made fair, taking out a century worth of bumps and movement.

The stations are all taken, and there is some work to do to fair everything as it shows some movement in the hull. No matter, it will all be straightened and cleaned up


Last step is to take the stem profiles, which are part of what makes the Cruiser so distinctive


Going to need some flexible battens longer than the boat. 18' clear pine, 18" wide, is what the form will be built from. We can spare an inch width to saw up some battens.

Half breadth view, widest portion of boat


Lumps taken out, first stage of fairing lines.


Waterline 3" below widest point of boat, showing amount of tumblehome


Tumblehome carried into ends of canoe.


Write up of the Guide Model



Tom Thomson out in his Guide model.


Shot of a canoeist attributed as Thomson, thought to be Canoe Lake


Above is a copy of Thomsons Guide License. Perhaps not as well known as his exploits in the park as an artist, is the fact the he also guided tourists in the park. When a new canoe from Chestnut was over $30 at this time, a dollar was not a cheap license at the time.  Below is a picture of a party being guided; while we have it listed elsewhere on the site, its entirely appropriate at this time.


In fact, in these early days in the park, after the decline of the birchbark canoe in favour of the manufactured cedar canvas canoes, aside from EM Whites, which were used at camps such as Keewaydin, Chestnut was one of, if not the only, manufacturer of canvas canoes in Canada at the turn of the last century. Peterborough, when they began canvas canoe production, was using some of their early board canoe forms, and surviving models show the hybrid construction. These early canvas boats have shelf gunwales, usual for a board or strip canoe.  Chestnut employed closed gunwale construction which was popular on the East Coast, among makers like Gerrish, White, Morris and Old Town. Cross boarder tarrifs, steep at the time and affecting many goods flowing between Canada and the US, made importation of US  boats less attractive than domestically produced Chestnuts - this is said to be one of the motivators of the Chestnut family's decision to enter the canoe business.  The above boat, and indeed many in early photos, are clearly Chestnuts.







Above is an early Chestnut Pleasure model, as evidenced by the sheer line and heart shaped decks, as opposed to the early Cruisers deck.




The progress continues, here adjusting the sheerline before proving the waterlines.


Ends are looking sweeter!


Starting to look like itself


Midsection smoothed out. Once done and the half breadths complete, the waterlines can be proven and construction can start on the building form.


Better batten, better curve. Sheerlines cleaned up


Correct heights at the ends, and the right amount of rise




Profile view is complete, next task is to fair the waterlines.


Maple decks in place and intact, showing the nice crown across the top, and cuticle cutout. Quite a bit apart from the heart shaped decks of the Pleasure model.


As with so many old boats we find, the caning has long since failed and with a nod to utility, the owner has covered the seat with a board. Not the prettiest, but quicker and more durable to be sure.


Underneath, remnants of  the classic caning pattern in use up till the end.


Front seat was covered some time later, as it now exhibits plywood. Although the first patent for what could be called plywood was issued December 26, 1865, to John K. Mayo of New York City, with its rich forest resources, it was only natural that Canada should join what eventually would become a truly North American plywood industry. The first Canadian plywood was produced in 1913 at Fraser Mills, New Westminster, British Columbia, but it wasn't until 1935 that a second mill was opened-by the H.R. MacMillan Company. Likely it wouldnt have become widely available immediately, so while this may or may not be an early piece of plywood, the point is that the boat had seen heavy use in its first decade or two of life.


Empty front seat, waiting to be re-caned. These parts, along with thwarts, will be made well in advance of the hulls, and put in as them come off the form.


Finally after a long break and a crazy summer and fall with work, we are ready to return to the corrected lines and trace the stations. Kids like the large work surface! Stations will then have to be reduced for sheating and steel bands used in the form construction, as well as for ribs, planks and canvas since the lines are lifted off of the outside of the completed hull.
Now its getting exciting, one step closer to a new, 106 year old cruiser!

Back at it, no stopping till we have a boat. First thing is a platform for the form, both to build it on and to hold it up while we build on it. Most forms will weigh a significant amount, the last one took two of us to move. Never weighed it, but north of 200 lbs. seemed likely.


Frame work waiting for shelf , casters and the rest of the cross bars.


Nearing completion.


Another shot.


Waiting for sintered iron casters, nylon or plastic arent up to the task.


Taking off stations from lines onto velum paper to be transfered to the plywood stacked on the platform.


Working in view of the original. Full size profile will come down to provide stem profile, distance from last station, verify sheer and check set up.
