Sunday 16 March 2014

If its wood, we'll work on it. A Dovetailed blanket box from the late 1800s.



With prices out of control on these 20+ years ago, boxes like this were out of reach and fetching unrealistic prices. With a slump in the market, they're back to realistic prices. Made of pine, this one has nice details, great dovetails, and hand made hinges.


Besides needing to find a key to fit the iron lock, it also needs several repairs and a total strip and refinish. The last person to work on it has done the typical refinish consisting of several coats of glossy finish, and some poor repair work.  Once back to its original glory, it will be wrapped up and given away later in the year.




An excellent source for many hard to find items, and reproductions of many rare and different pieces of hardware
http://www.leevalley.com/en/home/OnlineCatalog.aspx?id=e8fdc23c

Lid stripped, starting on box.


Chemical stripping only, no sanding. Few small repairs and screw holes to fill and re-drill, for original cast hinges. Tung oil to follow stripping before finishing.

Progress as we start up on this after a break. Lower trim all to come off for refinishing and repairs


Porcupine corners. Yikes, lots of nails


Corner repair, old split with decades of gunk in it.


Thick bottom nailed on, needs a few more to secure it for another 100 years.




OLD nails.




Original pencil lines for 45 corners. Knot in stock hidden on back side. Bottom and back all display lots of knots as clear lumber used on sides and top.


Trim wrestled off.


16/30 varnish coming along.

Lee Valley, source for all things kool and obscure, supplied the new (old) square nails, $8/lb. Reassembly will be authentic.


Trim/legs repaired and stripped


Last to strip, the back, and main box is done


Drilling out old dowels on bottom


All stripped and light sanded, ready for tung oil.


First puddle, the most satisfying part of restoration projects


Inside of bottom cleaned up, ready to be attached.




Box sanded ready for oil


Nice, old growth sides, over 22 inches wide and clear. Imagine the tree that yielded the material


Oil


All oiled up




Lid oiled and back on for show


Whats left:  dowel and fill old screw holes and re-drill, fasten handles and legs, attach lid hinges, and finish coats of oil. And a chain for the lid so it cant go over any more.

Bottom pegged, another coat of oil and lid has been paste waxed


Trim ready and feet ready to go back on, past the half way mark!


Back together



Left to do: attach lid with original cast iron hinges and fit lock and escutcheon plate


Oiled and waxed


Repairs done, ready to go

Sharpening.


Not much to say, but its not a much fun as working on boats. Especially when you dont do periodic touch ups, but wait till they all need it - then you kill an afternoon or several evenings after putting it off as long as possible.  *sigh*


Monday 10 March 2014

What is a 'Bavaria Boote Mustang'?

Long answer short, this is:

This creation found its way into the shop. Still not sure what to make of it!


German makers marque. The internet provided some clues, as usual.


Mustang model, 15' long.


Sealed flotation in the ends, with a hatch for storage.


Love it or hate it, it needs some 'glass patching, smoothing and paint.


Third seat to be put back in, might not make a bad kid hauler and/or fishing machine.


Similar model from the web, with tractor seats. Now we know what the cords 'glassed into the sides were for - flotation.


Patches done, holes filled


patched inside and out


stronger than before


Primer on the inside


Topside done, ready for paint

Now for the flip

Next is the two tone paint and new seats of Mahogany Ply.

Primed and masked, ready for paint


Here's the look we're going for


Epifanes, single part marine enamel. Fantastic paint.




First coat


One side done.


Inside, coaming and lower hull will all be white.




2nd and 3rd coat will even out the finish, after sanding and prep.

Next up, seats. Mahogany ply to be cut, shaped stained and varnished.

Just the lower half left to paint

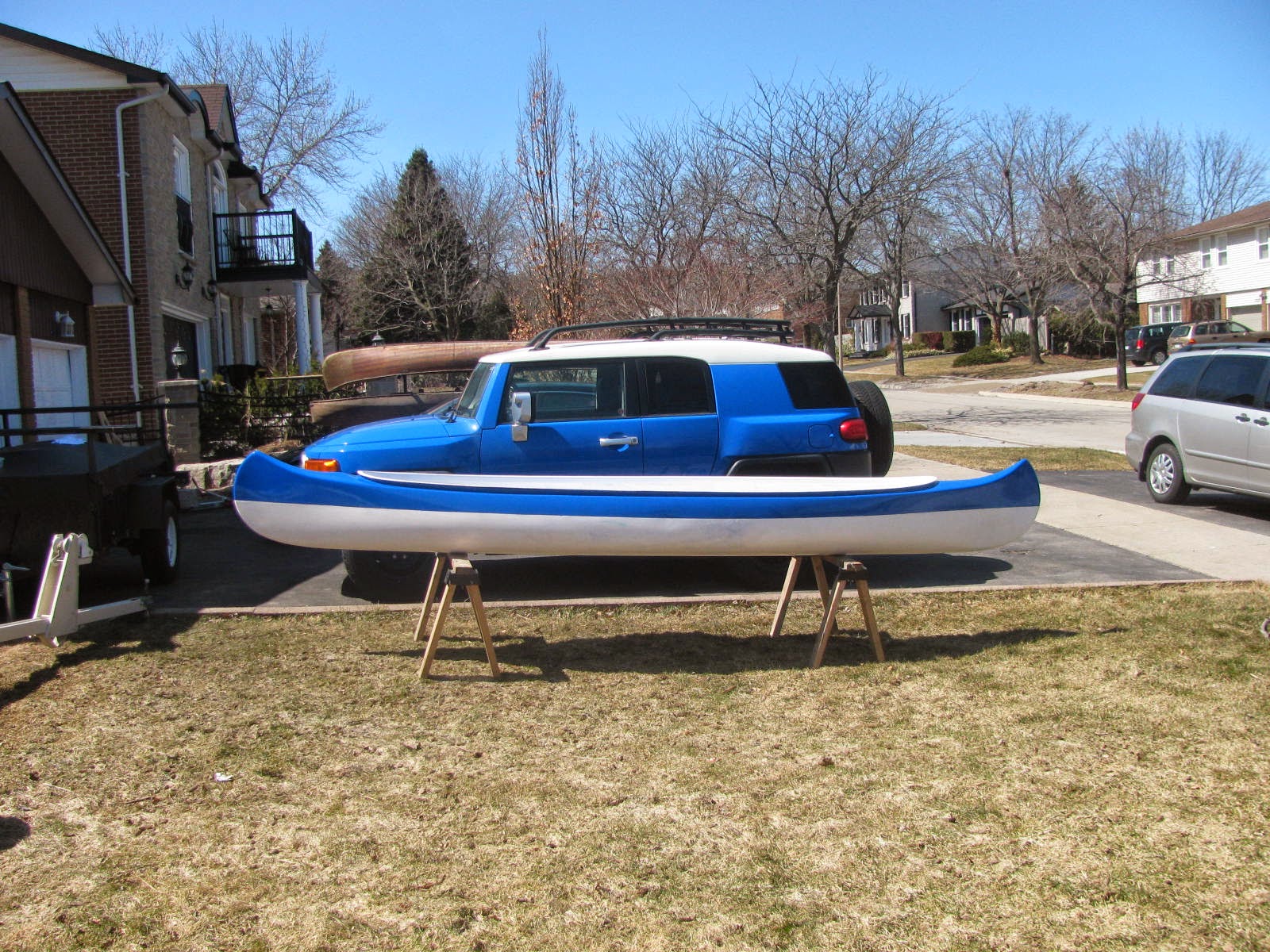

Matches the Toyota pretty closely!


Nasty old waterlogged mahogany ply seats


New seats x3


Some stain to bring up the grain, then varnish.


Seats in, almost done


3 or 4 coats of varnish on seats, paint the bottom and stripe the joint and its ready for spring
